Solicitud

The cables are designed for ADSL transmission system. The cables are characterized by guaranteed data speeds up to 10MHz. The cables have a small cable diameter with an easily removable sheath.

Normas

• IEC 61156-1 Part 1

• ANSI/ICEA S-80-576





Construcción

Conductores
Solid annealed bare copper sized 0.4mm as per ASTM B-3/IEC 60228 Class 1

Aislamiento
Solid polyethylene as per ASTM D 1248/IEC 60708

Pares trenzados
Insulated conductors are twisted into pairs with varying lays to minimize crosstalk

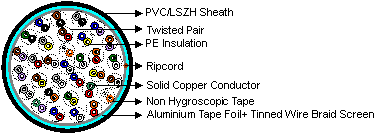

Cable Core Assembly
The pairs are cabled in concentric layer to form the cable core

Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap

Pantalla
An aluminium polyester foil is applied in close contact with tinned copper braid screen

Vaina
PVC or LSZH compound

Ripcord
Ripcord may be placed to facilitate sheath removal

Propiedades eléctricas

Number of Pairs		24	32	64	72	96	128
Maximum Conductor Resistance @20°C	Ω/km	143	143	143	143	143	143
Minimum Insulation Resistance @500V DC	MΩ.km	1000	1000	1000	1000	1000	1000
Maximum Mutual Capacitance @800Hz	nF/km	80	80	80	80	80	80
Maximum Capacitance Unbalance pair-to-pair	pF/500m	250	250	250	250	250	250
Impedance	Ω	120	120	105	105	100	105
Maximum Average Attenuation @1MHz	dB/km	32	32	32	32	32	32
Maximum Average Attenuation @10MHz	dB/km	110	110	110	110	110	110
Minimum NEXT pair-to-pair @1MHz	dB	55	55	55	55	55	55
Minimum NEXT pair-to-pair @10MHz	dB	40	40	40	40	40	40
Dielectric Strength 1min	V DC	1500	1500	1500	1500	1500	1500

Propiedades mecánicas y térmicas

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter

Código de colores

Standard colour code is per ANSI/ICEA S-80-576 given in Colour Code Chart

Dimensiones y peso

Código de cable	Número de pares	Espesor nominal de aislamiento mm	Espesor nominal de la vaina mm	Diámetro nominal global mm	Peso nominalkg/km
TP576-2Y(St)Y-24P04-ADSL	24 / 3X4Q	0.2	0.9	11.0	139
TP576-2Y(St)Y-32P04-ADSL	32 / 4X4Q	0.2	0.9	12.0	180
TP576-2Y(St)Y-64P04-ADSL	64	0.15	1.0	15.0	300
TP576-2Y(St)Y-72P04-ADSL	72	0.15	1.0	16.0	330
TP576-2Y(St)Y-96P04-ADSL	96	0.15	1.1	19.5	450
TP576-2Y(St)Y-128P04-ADSL	128	0.15	1.2	20.0	528
